ART® - flow plate reactor

The modular and versatile ART® Plate Reactors are milli-structured plate reactors with excellent heat transfer, optimal residence time distribution and faster mixing than conventional techniques, designed for quick and easy scale-up. The reactors are made of Hastelloy which leads to a robust design. ART® Reactors enable a broad spectrum of reaction categories, from research and development to production applications allowing for different temperature zones within the same apparatus.

The result is a significantly intensified process in terms of yield, costs and safety. Multiple injection, multi-step reactions and sampling in mid-process are possible due to additional ports. Efficient process control enhances options for monitoring and can be easily integrated. The implementation in multi-purpose plants allows flexible product changeovers. Additionally, the reactors can be completely disassembled, simplifying the cleaning process.

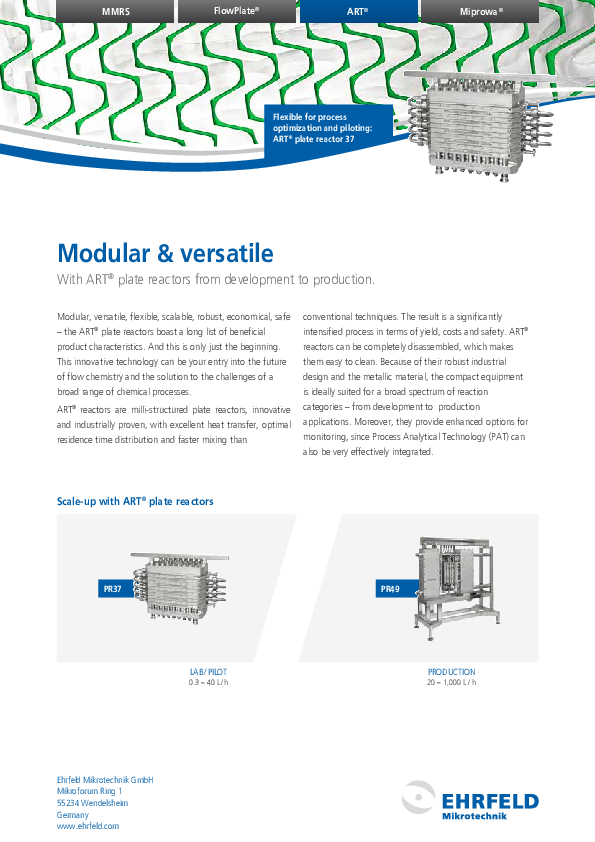

The Art® series includes the Art® Plate Reactor PR37 for laboratory and pilot scale applications and the Art® Plate Reactor PR49 for production scale.

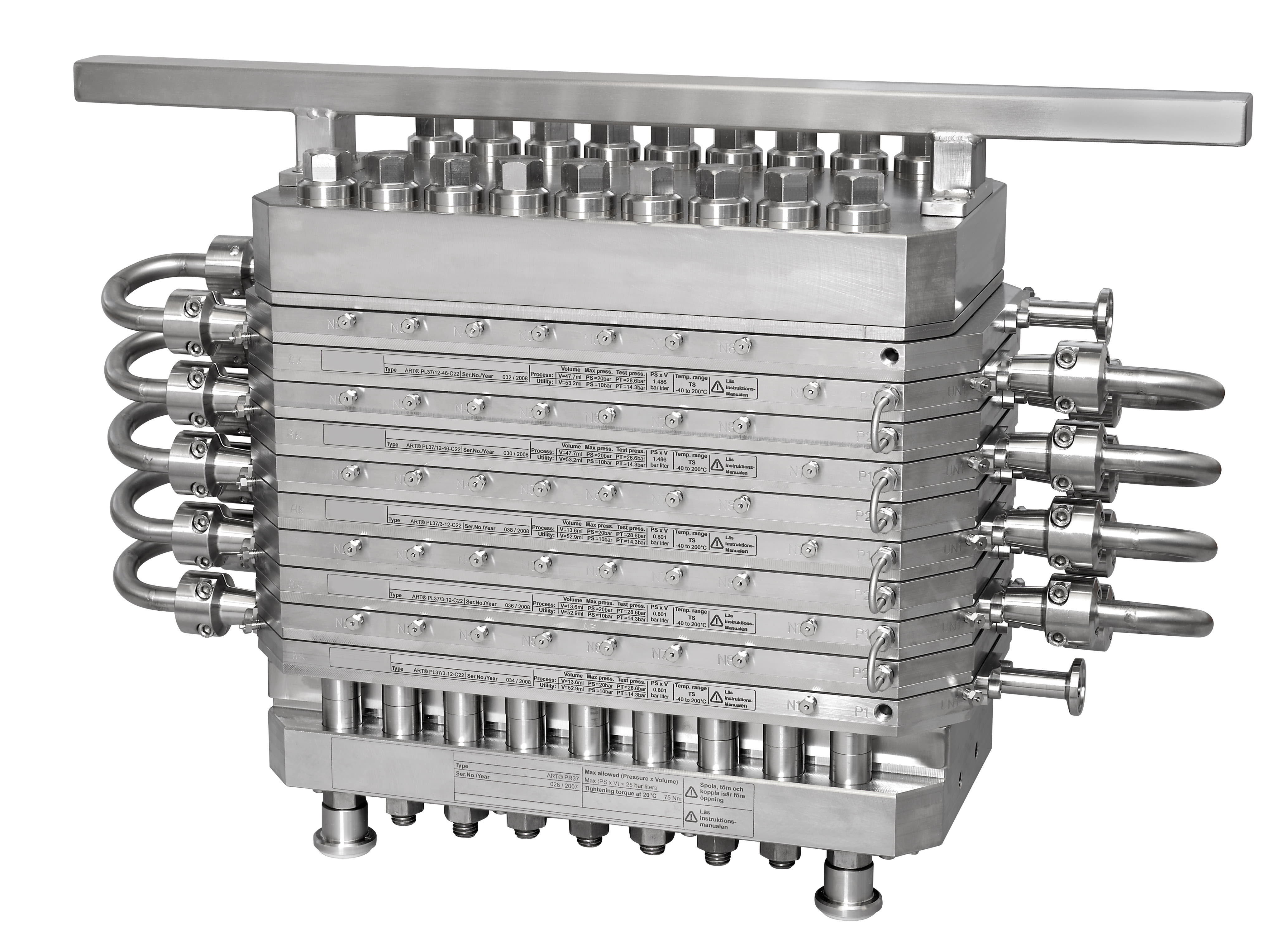

ART® Plate Reactors PR37

Dimension (l x w x h): 550 x 170 x 240/370 mm
Max. pressure process medium (service medium): 20 bar (10 bar)
Temperature: -60 °C to +200 °C
Material (process plates): Hastelloy®

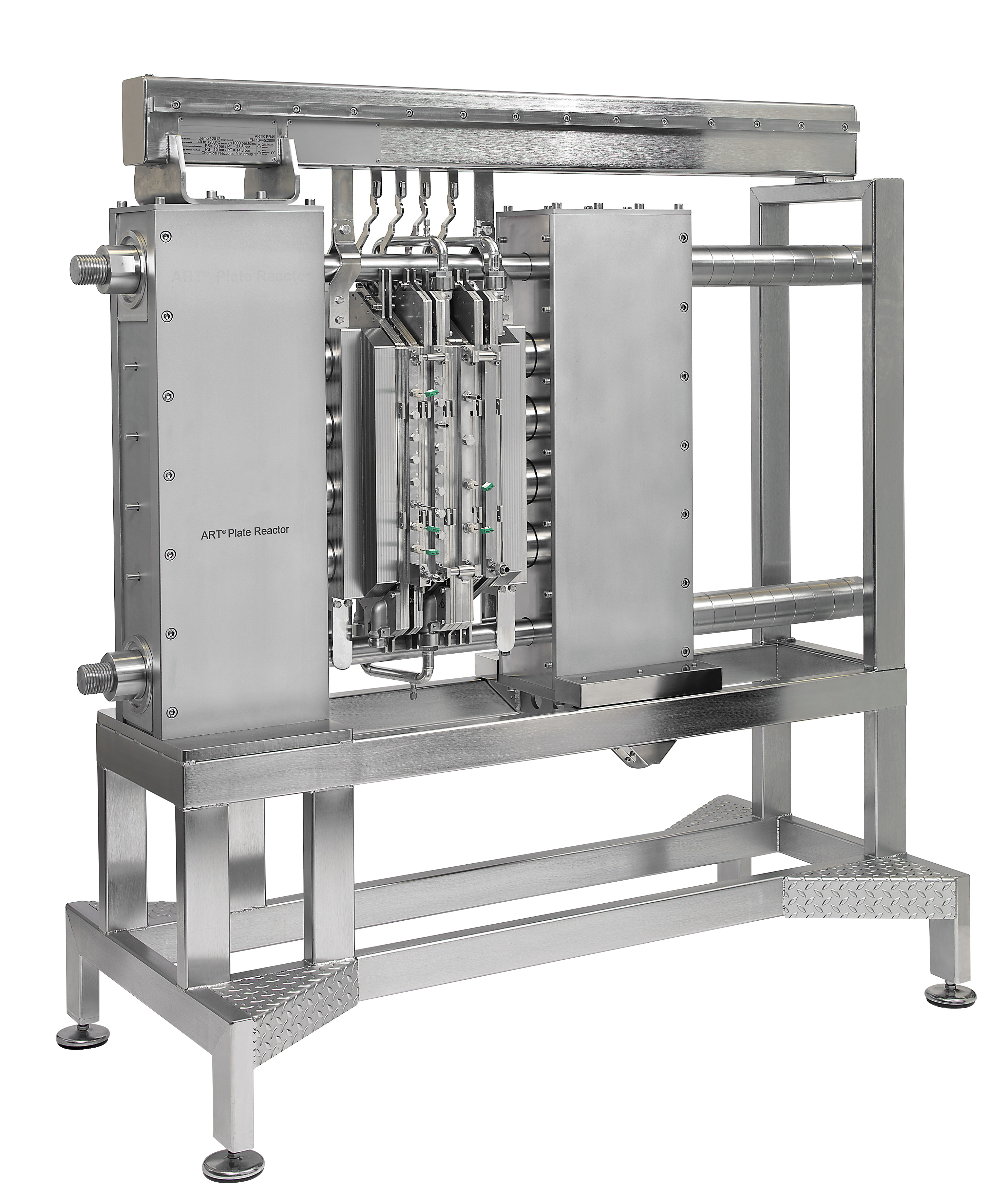

ART® Plate Reactors PR49

Dimension (l x w x h): 1930 x 800 x 1830 mm
Max. pressure process medium (service medium): 20 bar (10 bar)
Temperature: -40 °C to +200 °C
Material (process plates): Hastelloy®

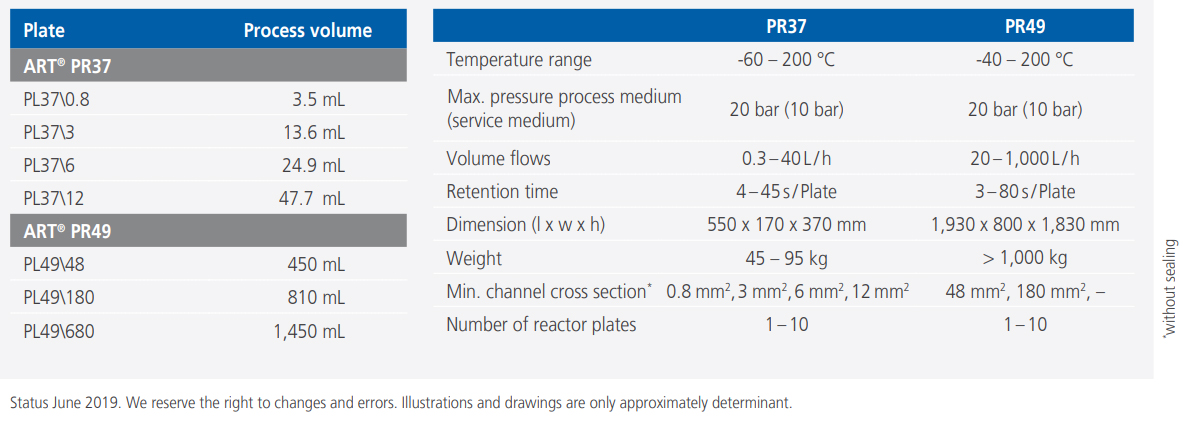

Technical Specifications:

For more information about the ART® - flow plate reactor, please visit the Ehrfeld website
